In this section you will learn how to connect Broadcasting software to your Live Streaming service provided by the Media Control Panel.
The benefit of software encoders is that they are generally the most cost-effective and portable solution.
You will require software that is capable of connecting and streaming to your Live Streaming service.
For beginners, we recommend starting with OBS Studio.
Wirecast
COMMERCIAL
Windows | Mac
Wirecast includes expanded functionality with a wide range of powerful, professional tools.
VidBlasterX
COMMERCIAL
Windows
VidBlasterX is great for mixing video and audio from many different sources, adding graphics, transitions and much more.
vMix
FREE & COMMERCIAL
Windows
vMix is a Live Video Production and streaming software including a wide range of features.
OBS Studio with Wowza Streaming Engine
- Download and install OBS Studio from https://obsproject.com/
- Login to your control panel
- Select your Live Streaming service
- Open OBS Studio and configure an Input Source
- Select Settings and configure Output. In this example we will configure a 720p stream.
- Now configure Output Audio, we recommend Audio Bitrate of 96 (Kbps)
- Select Stream and enter the details from the MediaCP. You will need to check the “Use Authentication” for a Wowza Streaming Engine service. Click on the image below to enlarge.
- Press Apply and OK
- Press Start Streaming. You should see the green square and the kb/s appear at the bottom. You will also see “LIVE:” at the bottom and more information.
Note that the bitrate will vary by about 10% in both directions, so you should make sure to use a lower bitrate than the limit in your control panel. For example, if your limit is 2048 you should configure OBS with 1800 Kbps to be safe.
Wirecast with Wowza Streaming Engine
- Download and install Wirecast from https://www.telestream.net/wirecast/overview.htm

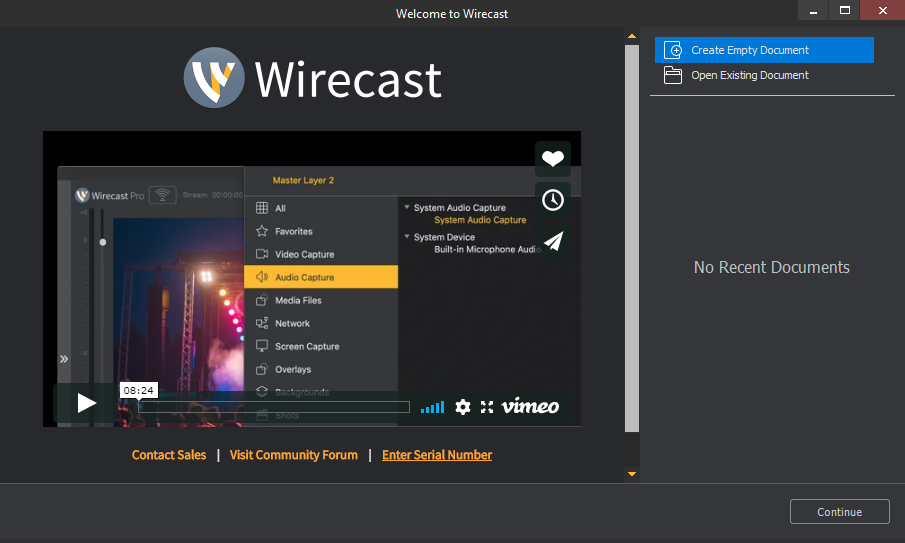

- Select Create Empty Document and then click on Continue

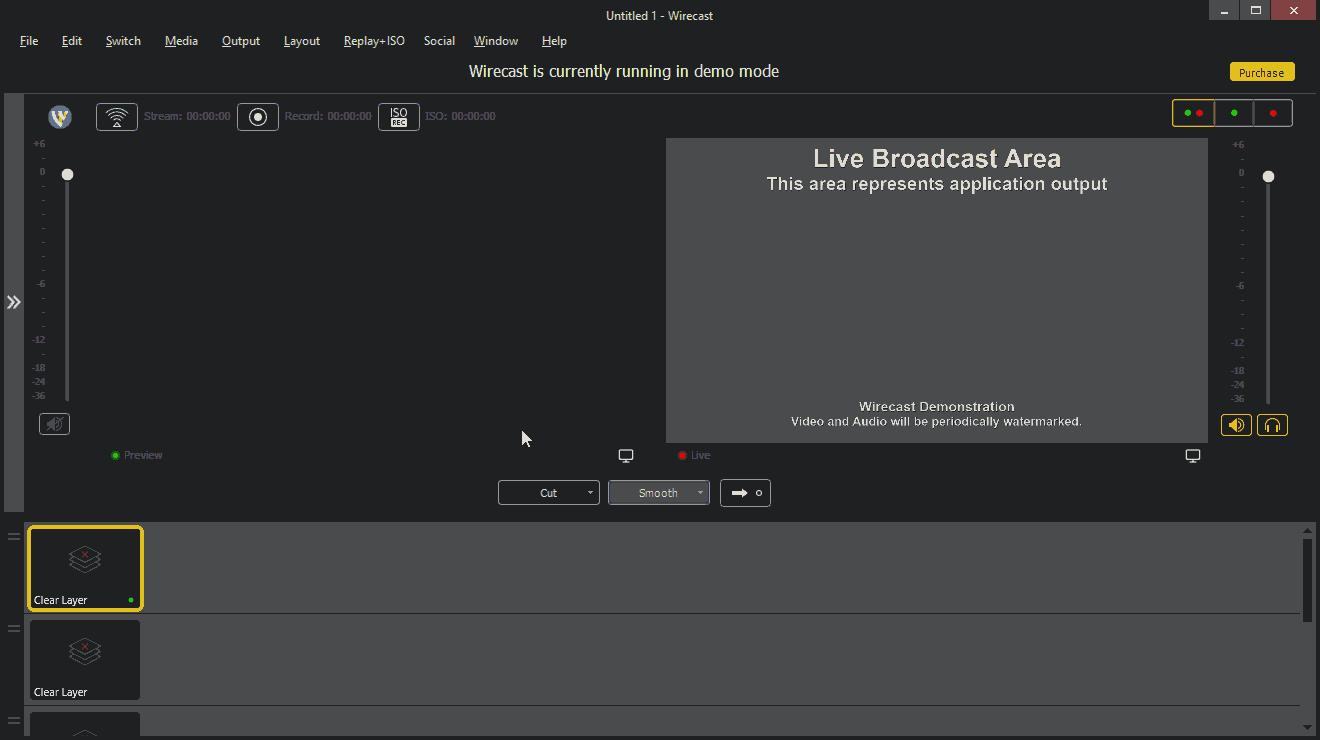

- Add a new input source layer

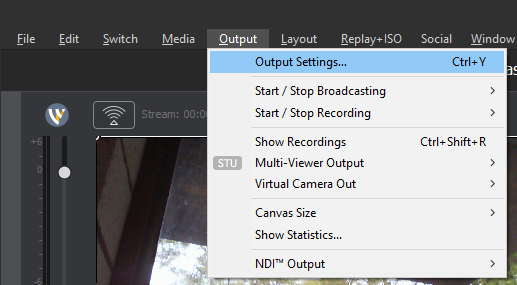

- Open Output Settings

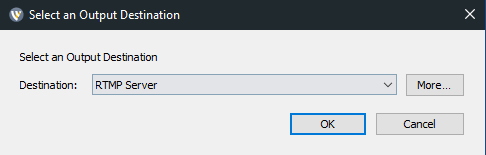

- Select RTMP server and press OK

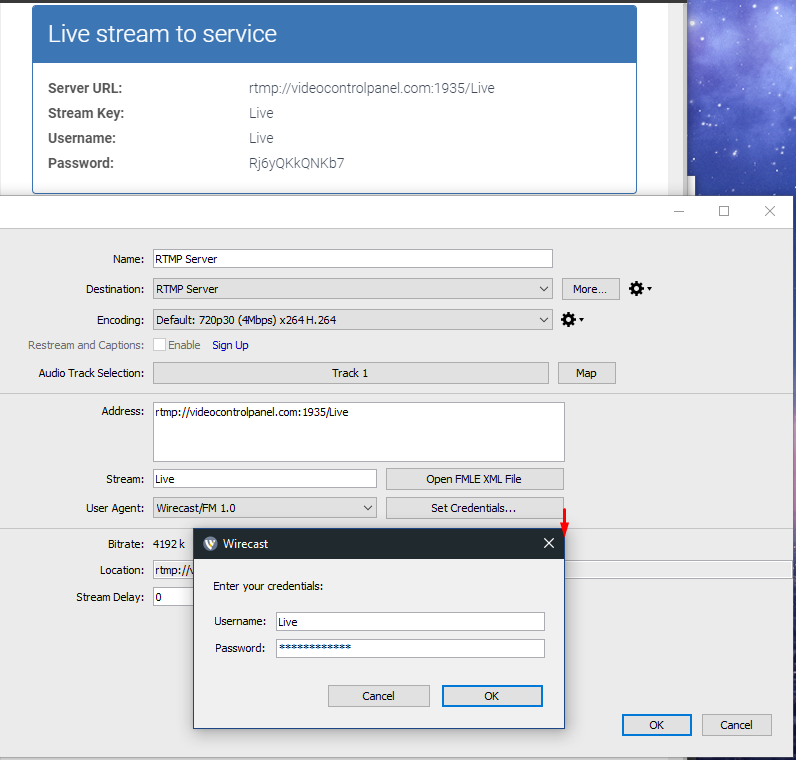

- Configure Wirecast Output RTMP Server with your provided Server URL and Stream Key.
a) Copy and paste MediaCP Server URL into the Address field in Wirecast
b) Copy and paste the MediaCP Stream Key into the Stream field in Wirecast
c) Click on Set Credentials then copy and paste the username and password fields
- Press OK

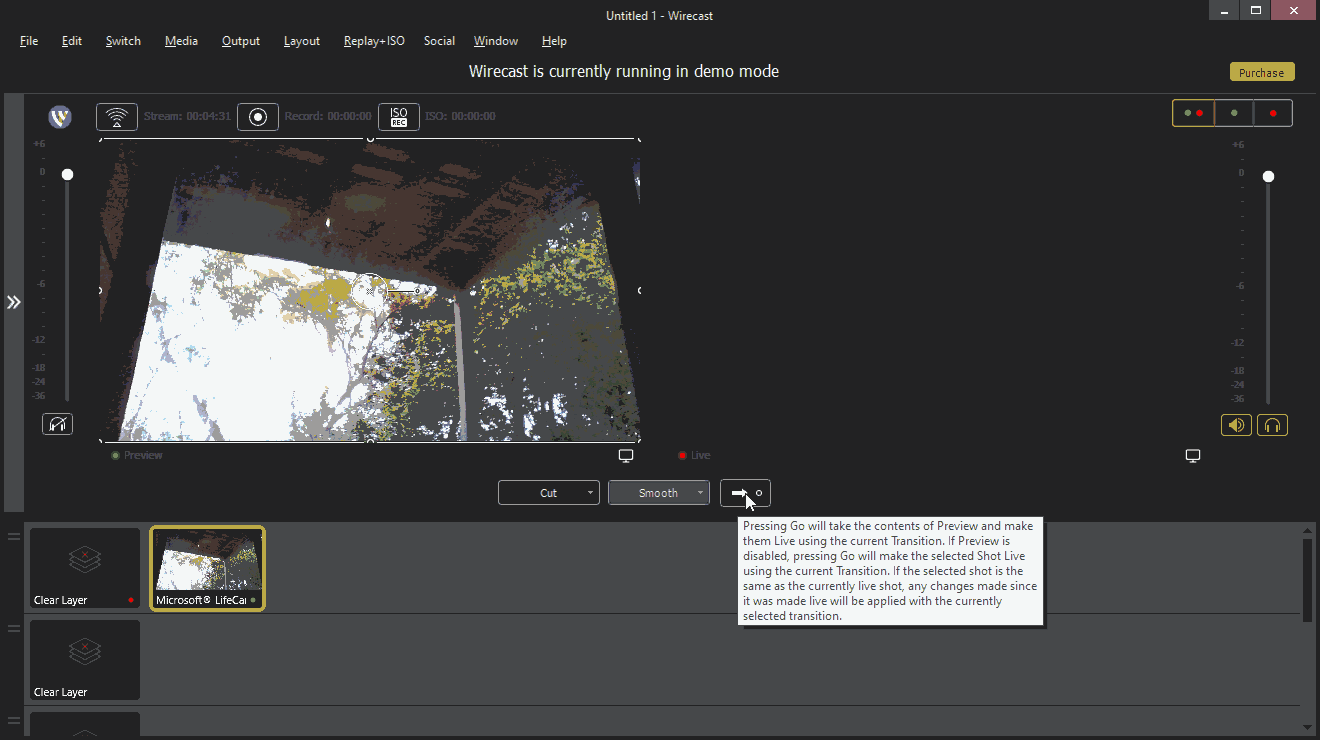

- Press the Go button and then the Broadcast icon button to begin broadcasting
OBS Studio with Flussonic Media Server
- Download and install OBS Studio from https://obsproject.com/
- Login to your control panel

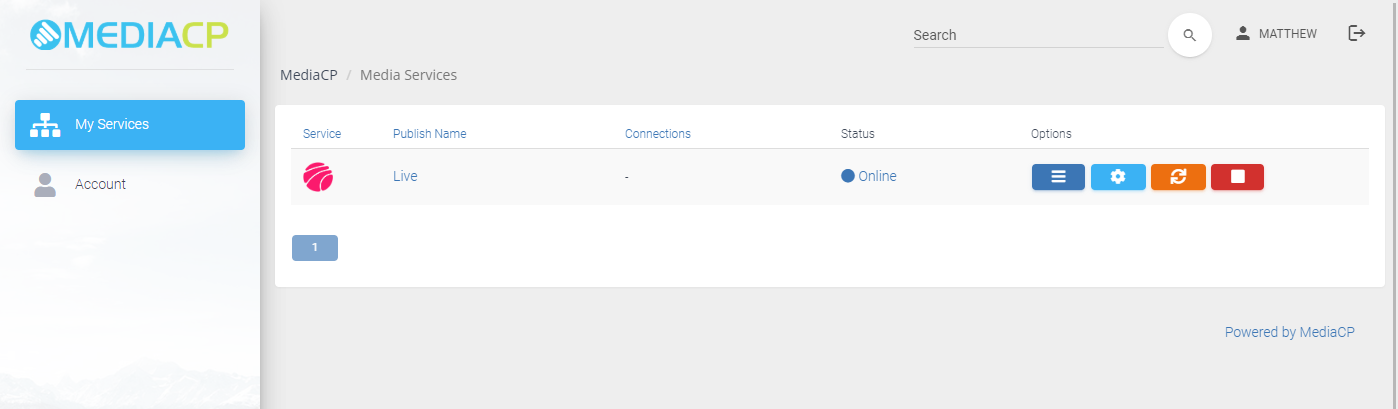

- Select your Live Streaming service
- Open OBS Studio and configure an Input Source
- Select Settings and configure Output. In this example we will configure a 720p stream.
- Now configure Output Audio, we recommend Audio Bitrate of 96 (Kbps)

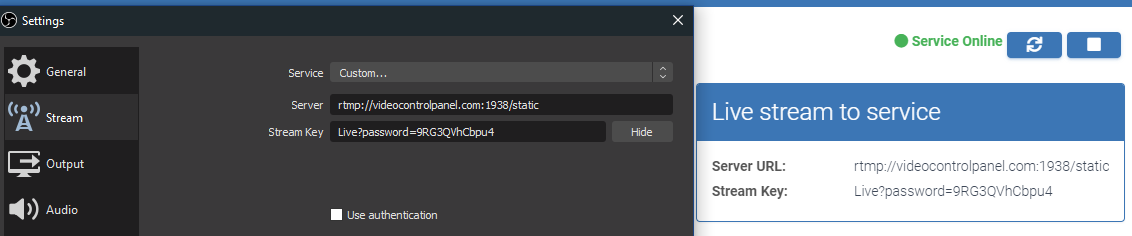

- Select Stream and enter the details from the MediaCP. You will need to check the “Use Authentication” for a Wowza Streaming Engine service. Click on the image below to enlarge.
- Press Apply and OK
- Press Start Streaming. You should see the green square and the kb/s appear at the bottom. You will also see “LIVE:” at the bottom and more information.
Note that the bitrate will vary by about 10% in both directions, so you should make sure to use a lower bitrate than the limit in your control panel. For example, if your limit is 2048 you should configure OBS with 1800 Kbps to be safe.
Wirecast with Flussonic Media Server
- Download and install Wirecast from https://www.telestream.net/wirecast/overview.htm
- Select Create Empty Document and then click on Continue

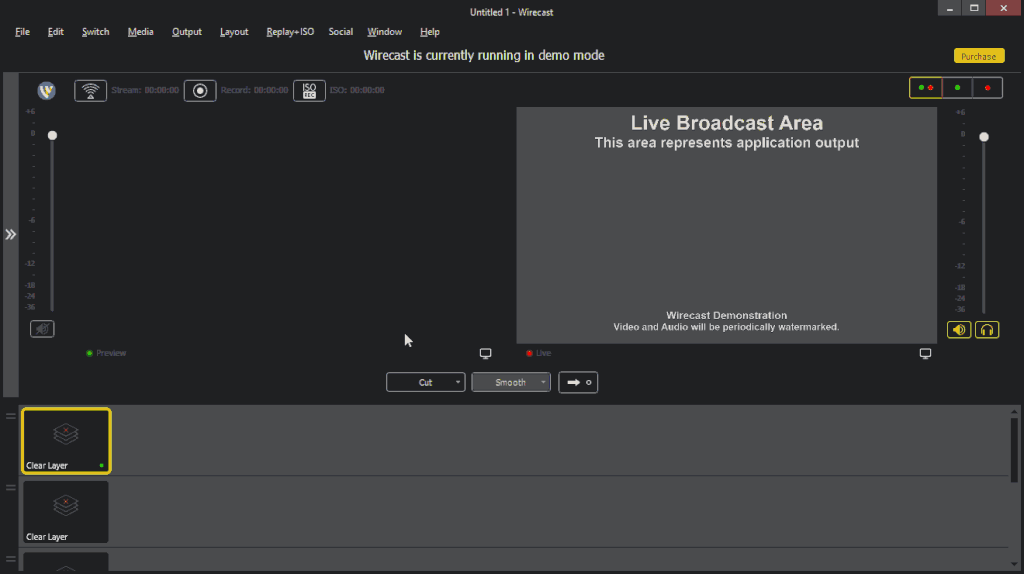

- Add a new input source layer
- Open Output Settings
- Select RTMP server and press OK

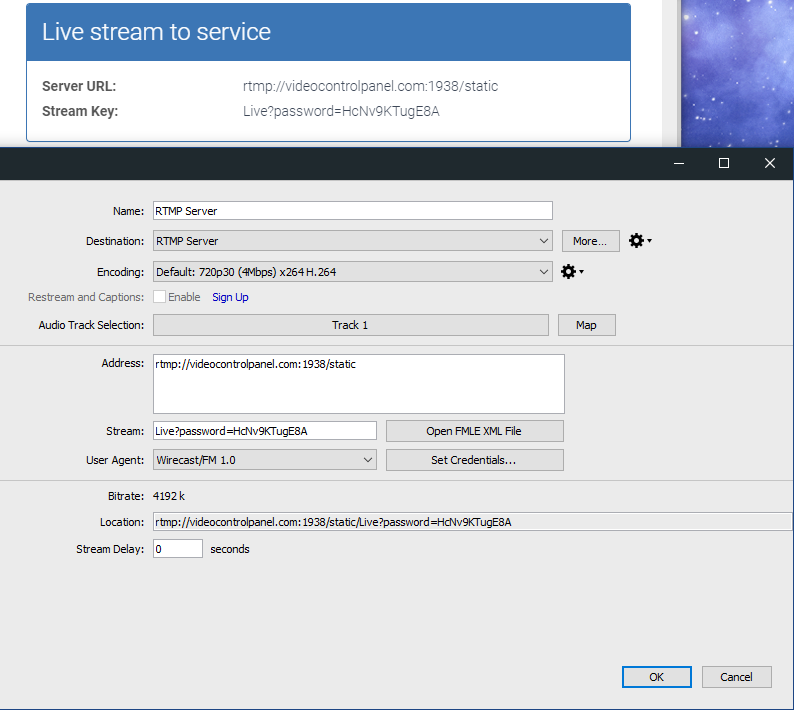

- Configure Wirecast Output RTMP Server with your provided Server URL and Stream Key.
a) Copy and paste MediaCP Server URL into the Address field in Wirecast
b) Copy and paste the MediaCP Stream Key into the Stream field in Wirecast
- Press OK
- Press the Go button and then the Broadcast icon button to begin broadcasting
OBS Studio with Nginx-Rtmp Video Server
- Download and install OBS Studio from https://obsproject.com/
- Login to your control panel

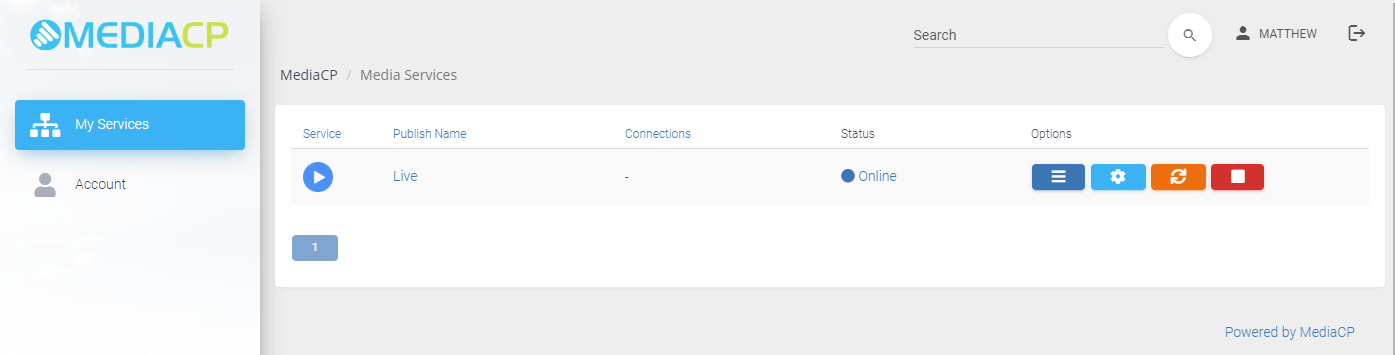

- Select your Live Streaming service
- Open OBS Studio and configure an Input Source
- Select Settings and configure Output. In this example we will configure a 720p stream.
- Now configure Output Audio, we recommend Audio Bitrate of 96 (Kbps)

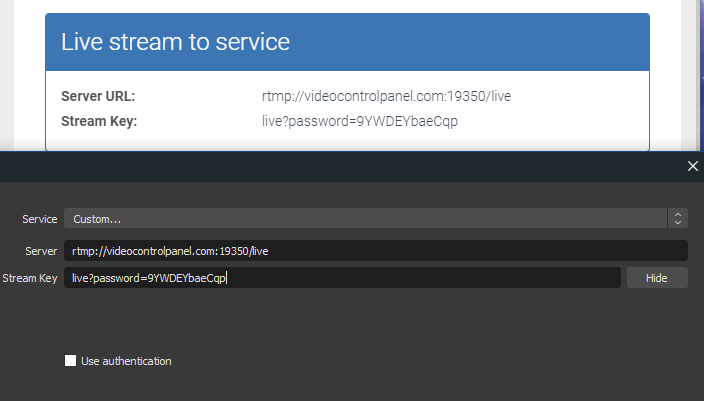

- Select Stream and enter the details from the MediaCP. You will need to check the “Use Authentication” for a Wowza Streaming Engine service. Click on the image below to enlarge.
- Press Apply and OK
- Press Start Streaming. You should see the green square and the kb/s appear at the bottom. You will also see “LIVE:” at the bottom and more information.
Note that the bitrate will vary by about 10% in both directions, so you should make sure to use a lower bitrate than the limit in your control panel. For example, if your limit is 2048 you should configure OBS with 1800 Kbps to be safe.
Wirecast with Nginx-Rtmp Video Server
- Download and install Wirecast from https://www.telestream.net/wirecast/overview.htm
- Select Create Empty Document and then click on Continue
- Add a new input source layer
- Open Output Settings
- Select RTMP server and press OK

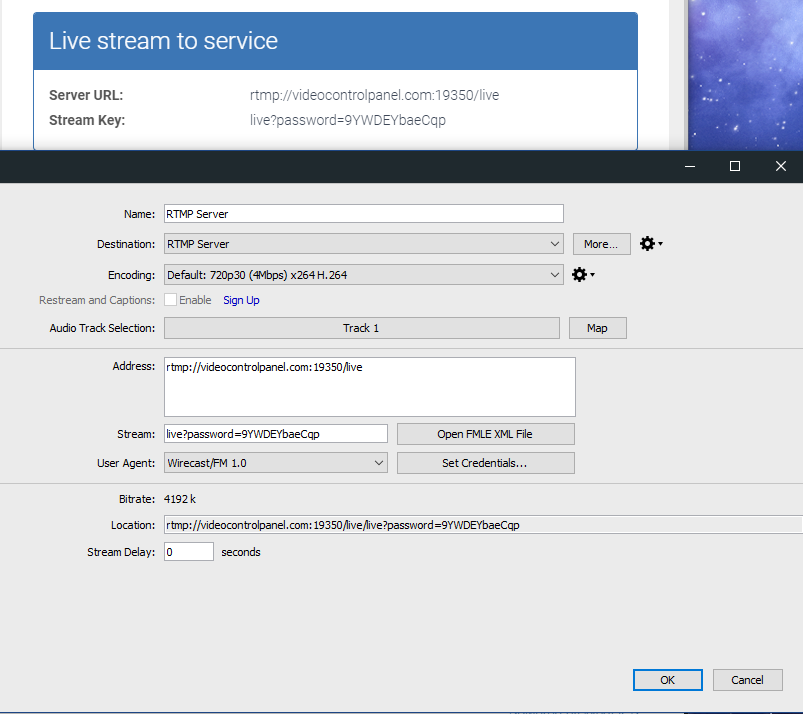

- Configure Wirecast Output RTMP Server with your provided Server URL and Stream Key.
a) Copy and paste MediaCP Server URL into the Address field in Wirecast
b) Copy and paste the MediaCP Stream Key into the Stream field in Wirecast
- Press OK

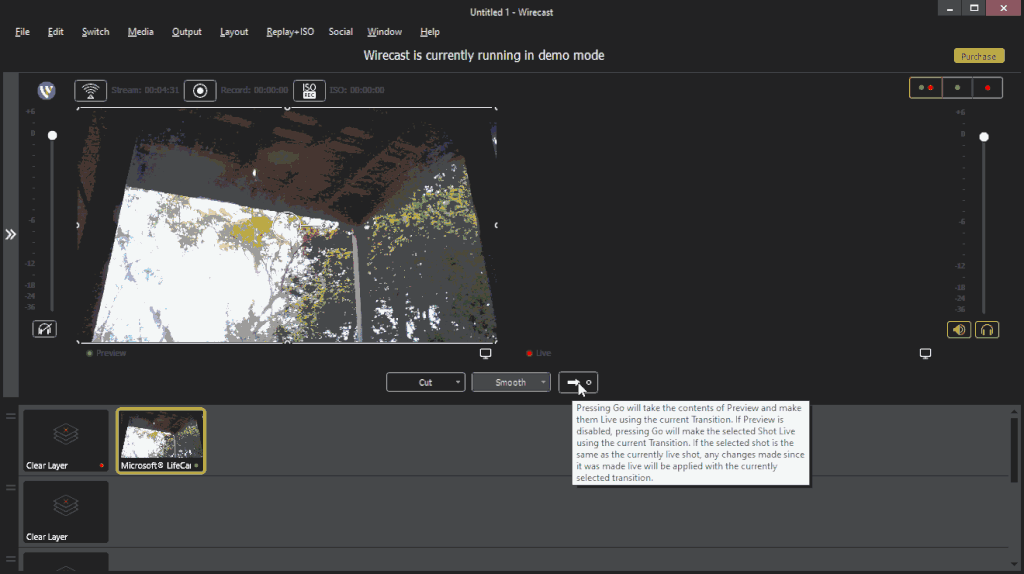

- Press the Go button and then the Broadcast icon button to begin broadcasting
